[Second-hand] OBDSTAR ISCAN BRP SEA-DOO MARINE Diagnostic Scanner Support All BRP models up to 2018
Related Products
-
$ 600.00Add To Cart
$ 600.00
-
$ 3,500.00Add To Cart
$ 3500.00
-
$ 2,250.00Add To Cart
$ 2250.00
-
$ 650.00Add To Cart
$ 650.00
-
$ 120.00Add To Cart
$ 120.00
-
$ 150.00Add To Cart
$ 150.00
Support device configuration, maintenance notification setting and other special functions.
Support all BRP models up to 2018
2 years free update.
Second-hand, 95% new, save you 120 USD
Support all BRP models up to 2018
2 years free update.
Second-hand, 95% new, save you 120 USD

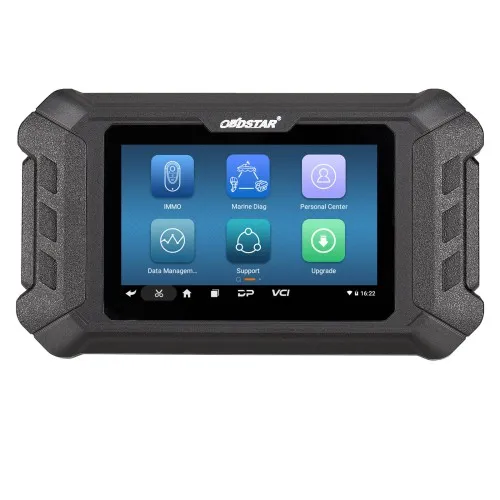

OBDSTAR ISCAN BRP SEA-DOO MARINE Diagnostic Scanner
ISCAN SEA-DOO (MARINE) is a portable tablet which has super performance and industrial appearance design specialized for SEA-DOO. It is a new generation of intelligent marine diagnostic equipment tailored for customers. Based on the RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, it brings customers professional diagnosis experience.
Product Features:
1. Android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.
8. Supported languages: EN, ES, RU, PT, TH, TR, FA, FR, DE, PL, IT, ID, VN.
9. Two years free update. 80 USD for update per year. (If you renew it before it expires, the price is 48 USD)
Advanced Function:
1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function (service lamp reset), basic parameters, etc., working with ISCAN to make marine diagnosis more accurately and efficiently;
2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyze faults.
3. Support Device Configuration, Maintenance Notification Setting and other special functions.
Diagnostic Support Series:
All BRP models support up to 2018.
Specifications:
| Operation system |
Android 5.1.1 |
|
CPU |
RK3128 quad-core ARM cortex A7 |
|
Battery |
2600mA, rechargeable polymer lithium battery |
|
Extension memory card |
32G micro SD (TF) card supported |
| LCD | 5.0 inch |
|
LCD resolution |
800*480 |
|
Touch screen |
Capacitive touch screen |
|
Wifi |
Supported |
| Working temperature | -20℃~55℃ (14℉~131℉) |
|
Storage temperature |
-20℃~70℃ (-4℉~158℉) |
|
Weight |
About 700g |
|
Dimension |
198mm*115mm*31mm |
Function Display-(From OBDSTAR Mobile App)
1) Main Page
2) Diag Socket/Diag Connector Location
Function Display-(From ISCAN)
1) Main Page/Brand Supported
2) Supported models
3) Data Flow Text/Waveform Diagram/Instrument Diagram
4) Special Functions
Package includes:
1pc x ISCAN SEA-DOO (MARINE) tablet
1pc x M001B main cable
1pc x M043 BRP(SEA-DOO) adapter cable
1pc x 12V2A charger
Shipping and delivery Attention:
Flat airmail: 7-18 working days for delivery. To South American and African countries it may take 20-25 working days.
DHL: 7-9 working days for delivery. We usually declare a lower value on a DHL invoice to help with customs clearance. If the address belongs to a remote area, the customer will need to pay a remote handling cost or change shipping method. Please leave a message if you have any special requirements.
YANWEN Express: 7-12 working days for delivery. No tax or remote delivery cost for European Countries.
EMS: 9-12 working days for delivery. To Russian only sent by EMS. For some remote areas, if you do not want to pay a remote fee, we can send it to you by EMS too.
Aramex: 9-12 working day. To most middle east countries. If you do not like this shipping method, please leave a message on your order.
Attention:
If you need YANWEN express shipping or other shipping methods like UPS, TNT, FedEx and so on, or you have special needs for your order, such as a declared name and so on, please leave a message on the order to notify us. Otherwise we will send the order as our usual practice.
As different countries have different import policies, sometimes we will change the shipping method based on the counties and goods.
When you receive the parcel, before you sign for acceptance, please check the package first to make sure the product is correct and undamaged.
After Sale Service:
If you have any problems, please do not hesitate to contact us. Please give us your detailed description, or error photo. We will provide the solution or solve it for you by teamviewer. For some special function, you can take the photo or video and then send it to us to check whether you operate it rightly.
Contact information:
Whatsapp:+86 15012919489
If you need any after-sale technical support, please inquiry this Whatsapp account:
+86 15012919489
If you have any problems, please do not hesitate to contact us. If your shipping method is fast shipping, please kindly give us your phone number for shipping.
