OBDSTAR DC706 ECU Tool Full Version with P003+ Kit for Car and Motorcycle ECM & TCM & BODY Clone by OBD or BENCH
Related Products
-
$ 600.00Add To Cart
$ 600.00
-
$ 3,500.00Add To Cart
$ 3500.00
-
$ 2,250.00Add To Cart
$ 2250.00
-
$ 650.00Add To Cart
$ 650.00
-
$ 120.00Add To Cart
$ 120.00
-
$ 150.00Add To Cart
$ 150.00
ECM & TCM & BODY Clone by OBD or BENCH
ECU Clone for Cars and Motorcycles
One Year Update for Free
Come with P003+ Kit and ECU Bench Cable
ECU Clone for Cars and Motorcycles
One Year Update for Free
Come with P003+ Kit and ECU Bench Cable

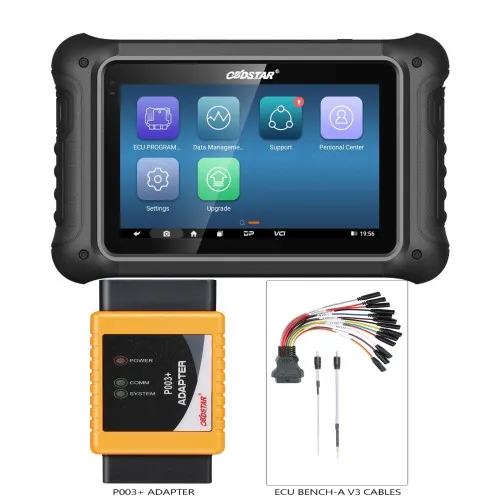

OBDSTAR DC706 ECU Tool Full Version with P003+ Kit and ECU Bench Cable
OBDSTAR DC706 ECU tool, with 1-year free upgrade, is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... It's all by OBD or bench mode and makes ECU cloning easy.
Product Function:
ECU Clone/ All by OBD or Bench
ECM clone for cars(Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)
ECM clone for motorcycles(Bosch, Delphi, EFI...)
TCM clone(Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...)
Body/Other clone(FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO...)
Supported ECU Manufacturers:
ALPS
Autoliv
Bosch
Continental
Delphi
Denso
Johnson Controls
Lear
Magneti Marelli
Siemens
Temic
Valeo
Supported Brands:
Cars:
ASTON MARTIN
BMW
FAW
FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)
FORD/LINCOLN
GM/OPEL
HYUNDAI/KIA
LAND ROVER/JAGUAR
LUXGEN
MASERATI
MAZDA
MITSUBISHI
NISSAN
OPEL
PSA
SMART
SUBARU
SUZUKI
VOLVO
VW/AUDI/SEAT/SKODA
Motorcycle:
APRILIA
BRP
CFMOTO
DERBI
GILERA
GUZZI
PEUGEOT
PIAGGIO
QJBENELLI
VESPA
Advanced Functions:
1. R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery...
2. Support 710+ ECM types(Partial functions require P003 adapter.)
3. Support 210+ TCM types
4. Support 120+ body/other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
5. Support VW DQXXX (TCM) calibrate mileage
6. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
7. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)
8. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
9. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
10. Support automatic identification
11. Strong help data files
12. All by OBD or Bench mode
13. Read, write and clone successfully for a HYUNDAI KIA SIM2K-341
14. When using boot mode to read ECU, you can also use with BDM frame.
15. The sim2k-341 protocol is newly added, support TC1766.
More functions are in developing...
Product Specifications:
| Operation system | Android 5.1.1 |
| CPU | RK3128 quad-core ARM cortex A7 |
| Battery | 3700mA, rechargeable polymer lithium battery |
| Extension memory card | 32G micro SD (TF) card supported |
| Storage capacity | 16GB |
| LCD | 7.0 inch |
| LCD resolution | 1024*600 |
| Touch screen | Capacitive touch screen |
| Wifi | Supported |
| Working temperature | -20℃~55℃ (14℉~131℉) |
| Storage temperature | -20℃~70℃ (-4℉~158℉) |
| Weight | About 1.3kg |
| Dimension | 243mm*148mm*36mm |
Function Display:
1) Main Page/Brand Supported
2) ECM Clone for Cars
3) ECM Clone for Motorcycles
4) TCM Clone
5) Body/Other Clone
OBDSTAR P003 Adapter with ECU Bench Cables
For reading BOSCH ECU data, CS, PIN code etc., including Audi, Citroen, DS, Mahindra, Peugeot, Skoda, SEAT, Volkswagen etc.
Attention:
There are two layers in the DC706 package box, please check the second layer for adapters.
How to connect the P003 adapter and ECU BENCH cables with OBDSTAR tablet devices?
1. Diag cable OBD connector(male)
2. Connect P003 connector(female)
3. P003 adapter
4. Boot jumper(spring needle)
5. Boot jumper(welding)
6. ECU pin connector
7. ECU boot connector
8. 12V power
Bench Mode:
Step 1: Connect 1, 2, 3 together as pic below;
Step2: connect the ECU pin connector to the ECU according to the wiring diagram;
Step3: connect 12V power with diagnostic device;
Step4: read data
Boot Mode:
Step 1: Connect 1, 2, 3 together as pic below;
Step2: connect the ECU pin connector to the ECU according to the wiring diagram;
Step3: connect 7 with 4 or 5 and connect it to ECU;
Step4: connect 12V power with diagnostic device;
Step5: read data on diagnostic device.
Package Includes:
1pc x DC706 Main Unit
1pc x main cable
1pc x P004 adapter (In the second layer of box)
1pc x P004 ECU clone jumper
1pc x 12V2A charger
1pc x P003+ Adapter
1 set x ECU BENCH cable
