Digital Oscilloscope Probe X1 X10 DC-100Mhz P6100 Osciloscopio Test Probes For Tektronix HP

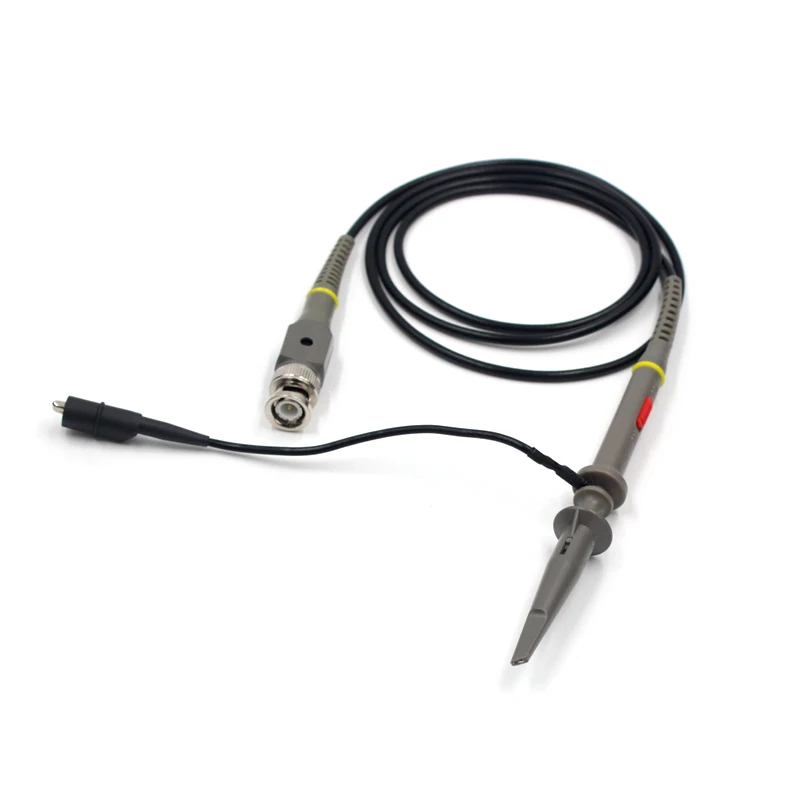

X1 X10 100Mhz Digital Oscilloscope Probe
- 100% quality and Brand new.
- P6000 Series Probes
- General Purpose, Bench or Field
- Economical, Yet Hot
- High Input Impedence (X10 range)
- Compensation (X10 range)
- Useable with scopes having Bandwidth up to 100 MHz
- Interchangeable Probe Tip
- Coaxial Reed Switch
- Modular Construction
- Compensation range: 10 to 30 pF
- Input Capacitance: 1X: 85pF-120pF; 10X: 18.5pF-22.5pF
- Input Resistance: 1X: 1Mohm; 10X: 10Mohm
- Bandwidth: 1X: DC-6MHZ, 10X: -100MHz
- Attenuation Ration: 1:10
- Weight: 250g
- Cable Length: Appox.120cm
- Operating Temp: -10C-50C
- Operating Humidity: <=85%
- Maximum Input Voltage: 1X: 300 VDC
- 10X: 600 VDC
- 1 pcs Oscilloscope clip probe
- 1xManual
