Item No.
HT005
Item Name.
Digital Oscilloscope Hantek DSO5102P Portable 100MHz 2Channels 1GSa/s Record Length 40K USB Osciloscopio Handheld Oscilloscopes
Related Products
-
$ 650.00Add To Cart
$ 650.00
-
$ 180.00Add To Cart
$ 180.00
-
$ 250.00Add To Cart
$ 250.00
-
$ 100.00Add To Cart
$ 100.00
-
$ 70.00Add To Cart
$ 70.00
-
$ 250.00Add To Cart
$ 250.00
100MHz bandwidths
2 Channels
1GSa/s Real Time sample rate
Large (7.0-inch) color display,WVGA(800x480)
Record length up to 40K
Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
USB host and device connectivity, standard
Multiple automatic measurements
Four math functions, including FFTs standard
Provides software for PC real-time analysis
VGA Optional
Software:
Operating system: Windows NT, Windows 2000, Windows XP ,VISTA
2 Channels
1GSa/s Real Time sample rate
Large (7.0-inch) color display,WVGA(800x480)
Record length up to 40K
Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
USB host and device connectivity, standard
Multiple automatic measurements
Four math functions, including FFTs standard
Provides software for PC real-time analysis
VGA Optional
Software:
Operating system: Windows NT, Windows 2000, Windows XP ,VISTA
Hantek DSO5102P Digital Oscilloscope 100MHz 2Channels 1GSa/s Real Time sample rate USB host and device connectivity 7 Inch
- 100MHz bandwidths
- 2 Channels
- 1GSa/s Real Time sample rate
- Large (7.0-inch) color display,WVGA(800x480)
- Record length up to 40K
- Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
- USB host and device connectivity, standard
- Multiple automatic measurements
- Four math functions, including FFTs standard
- Provides software for PC real-time analysis
- VGA Optional
-
Software:
Operating system: Windows NT, Windows 2000, Windows XP ,VISTA
| DSO5202P | DSO5102P | DSO5072P | |
| Bandwidth | 200MHz | 100MHz | 70MHz |
| Channel | 2 | ||
| Real-Time Sample | 1GSa/s | ||
| Equivalent Sample | 25GSa/s | ||
| Memory Depth | 40K | ||
| Rise Time | 1.7ns | 3.5ns | 5ns |
| Time Base Accuracy | 50ppm | ||
| Time Base Range | 2ns/div-40s/div | 4ns/div-40s/div | |
| Input Impendance | 1M | ||
| VOLTS/DIV Range | 2mV/div-5V/div | ||
| A/D Converter | 8 bit | ||
| Position Range | 50V(5V/div), 40V(2V/div-500mV/div), 2V(200mV/div-50mV/div), 400mV(20mV/div-2mV/div) |
||
| DC Gain Accuracy | 3% for Normal or Average acquisition mode, 5V/div to 10mV/div; 4% for Normal or Average acquisition mode, 5mV/div to 2mV/div |
||
| Bandwidth Limit | 20MHz | ||
| Trigger Types | Edge, Video, Pulse, Slope, Over time, Alternative | ||
| Trigger Source | CH1, CH2, EXT, EXT/5, AC Line | ||
| Math | +,-,x,÷,FFT | ||
| Cursor Measurement | Voltage difference between cursors: V; Time difference between cursors: T; Reciprocal of T in Hertz (1/T); |
||
| Auto Measuerment | Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF | ||
| Display | 7" TFT 16K Color LCD, 800*480 dots | ||
| Size | 313mm x 108mm x 142mm | ||
| Weight | 2.08KG | ||
| Standard Probe | PP200x2 | PP150X2 | PP80X2 |

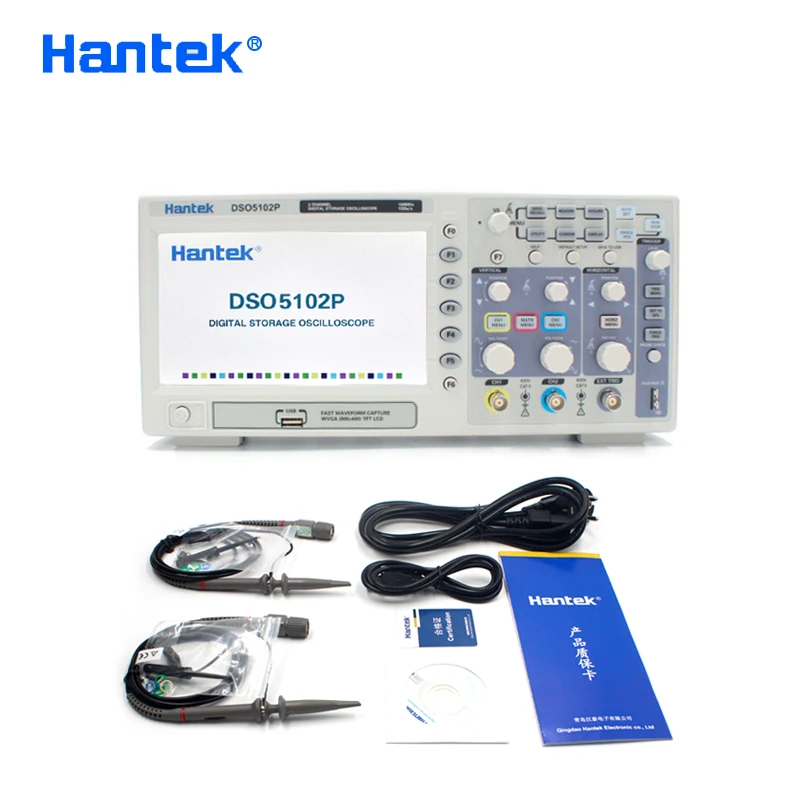

- 1 x 5102P Oscilloscope Host
- 2 x Connecting Lines
- 1 x USB Cable
- 1 x Installation CD
- 1 x Power line
- 1 x Original box
